Philips VIZIO Toshiba LCD Inverter Repair Kit:

Inverter board part numbers:

 6632L-0490A
6632L-0491A
75013080-M
75013080-S
0940-0000-1450

This kit containes 5 components:

Integrated Circuit BD9897FS 1pc.
MOSFET Transistor FDD8447L 4pcs.

This tutorial demonstrates how to repair LCD Inverter board with following symptoms:

-no picture, has sound
-buzzing noise
-burn marks on inverter board(s)

Instructions:

[full size image]

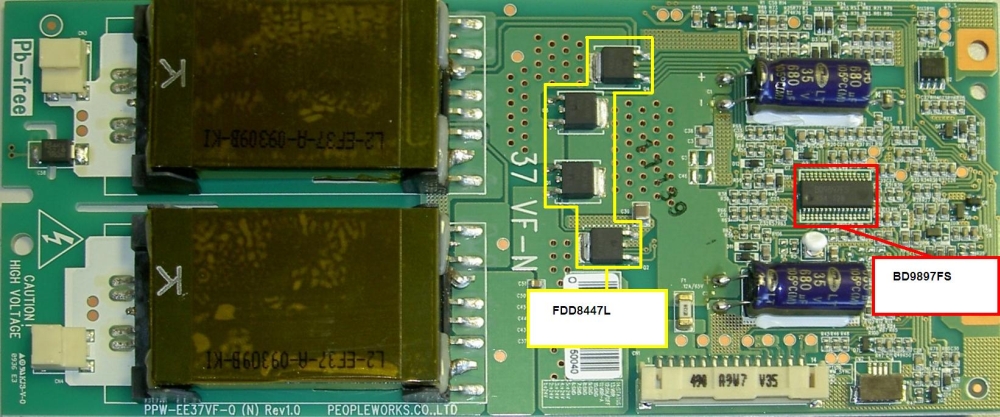

  Photo 1. 6632L-0490A 75013080-M 0940-0000-1450

  Replace 4 MOSFETs marked with yellow captions and 1 IC marked with red caption.



[full size image]

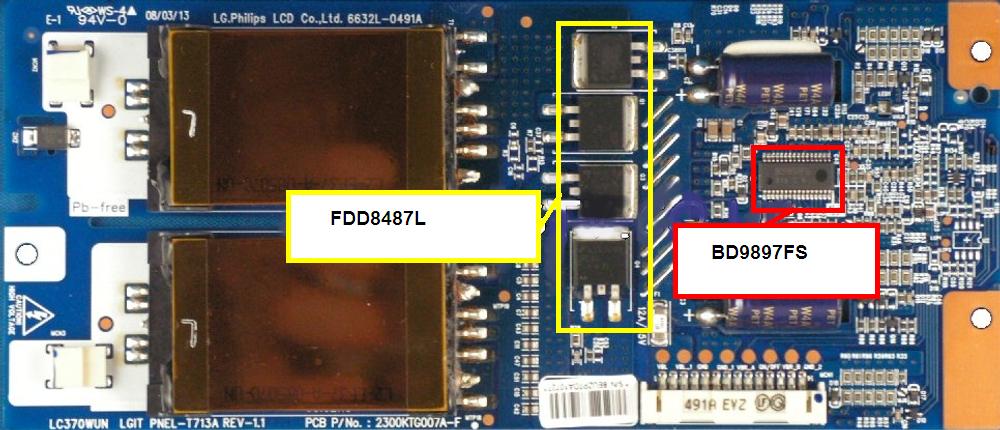

  Photo 2. 6632L-0491A 75013080-S 0940-0000-1450

  Replace 4 MOSFETs marked with yellow captions and 1 IC marked with red caption.
