Toshiba Hyper Module Repair Kit MVPU15:

Hyper Module Part numbers:

MVPU15

This kit containes 10 components:

Electrolytic capacitor 10uF/16V SMD 10pcs.

This tutorial demonstrates how to repair TOSHIBA Projection TV with following symptoms:

-jagged picture
-pie crusting
-distorted video
-digitized picture
-poor sync (rolling picture)

Applies to the following projection TV models:

Toshiba 32HF72
Toshiba 34HD82
Toshiba 34HDX82
Toshiba 36HF72
Toshiba 36HFX72

Instructions:

Locate the capacitors that need the replacement on the hyper module marked with white caption boxes on the photo.
Remove the MVUP15 Hyper Module from the TV chassis, remove the top shield and replace the 10uf, 16v capacitors
as shown in Photo 1. It’s recommended that all of the capacitors identified in Photo 1 be replaced.
(Note: These capacitors are low impedance surface mounted aluminum electrolytic capacitors.
Care should be taken to avoid damaging the PCB while replacing these capacitors.)

[full size image]

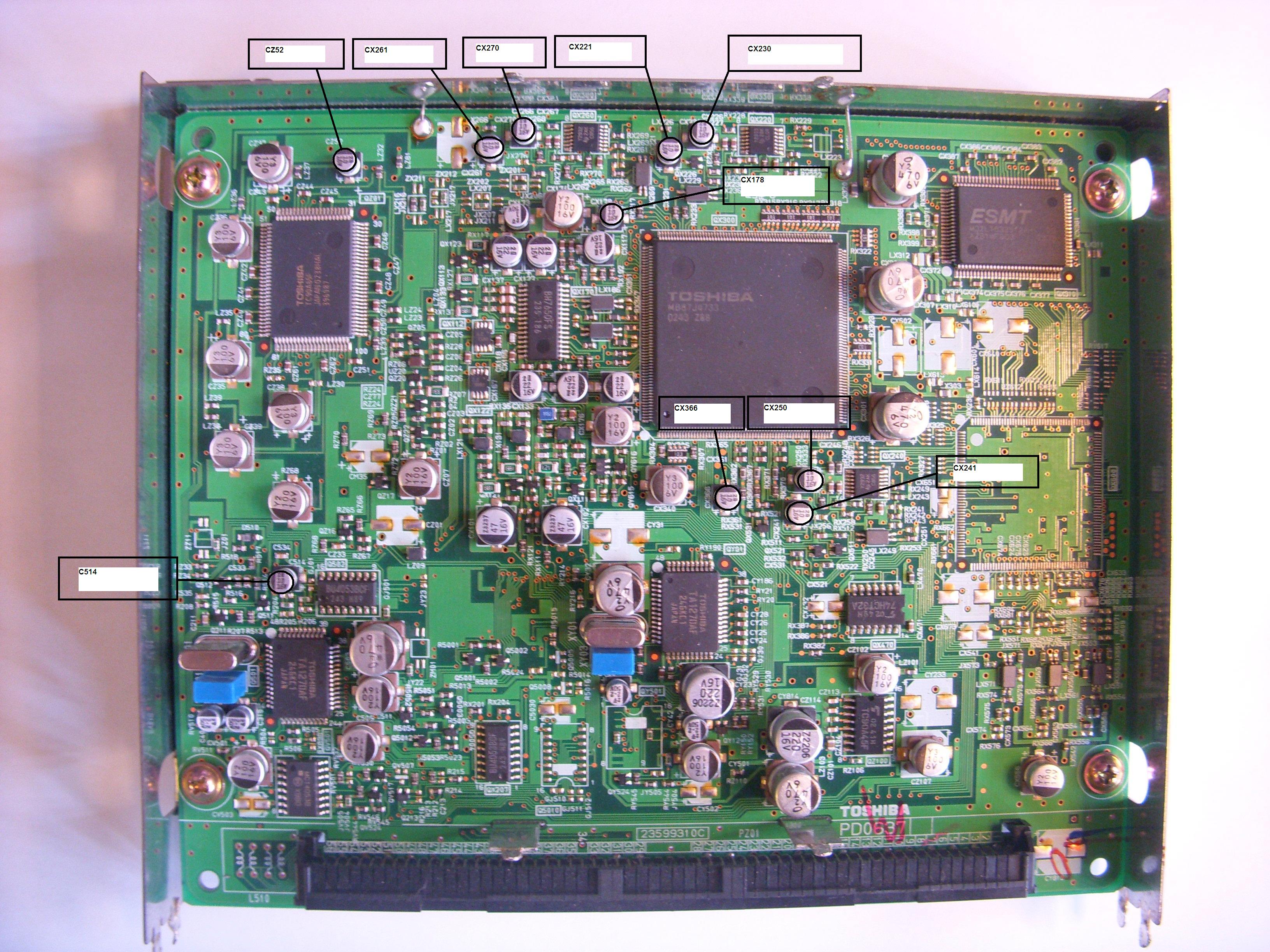

  Photo 1

  Replace 10 capacitors marked with white caption boxes.
