Toshiba Hyper Module Repair Kit MVPU14:

Hyper Module Part numbers:

MVPU14
23148024
23148024P
23148024X

This kit containes 11 components:

Electrolytic capacitor 10uF/16V SMD 11pcs.

This tutorial demonstrates how to repair TOSHIBA Projection TV with following symptoms:

-jagged picture
-pie crusting
-distorted video
-digitized picture
-poor sync (rolling picture)

Applies to the following projection TV models:

Toshiba 42HDX82 Toshiba 42H82 Toshiba 42H83 Toshiba 43H72
Toshiba 50HDX82 Toshiba 50H13 Toshiba 50H72 Toshiba 50H82
Toshiba 57HDX82 Toshiba 57H82 Toshiba 65HDX82 Toshiba 65H82

Instructions:

Locate the capacitors that need the replacement on the hyper module marked with white caption boxes on the photo.
Remove the MVUP14 Hyper Module from the TV chassis, remove the top shield and replace the 10uf, 16v capacitors
as shown in Photo 1. It’s recommended that all of the capacitors identified in Photo 1 be replaced.
(Note: These capacitors are low impedance surface mounted aluminum electrolytic capacitors.
Care should be taken to avoid damaging the PCB while replacing these capacitors.)

[full size image]

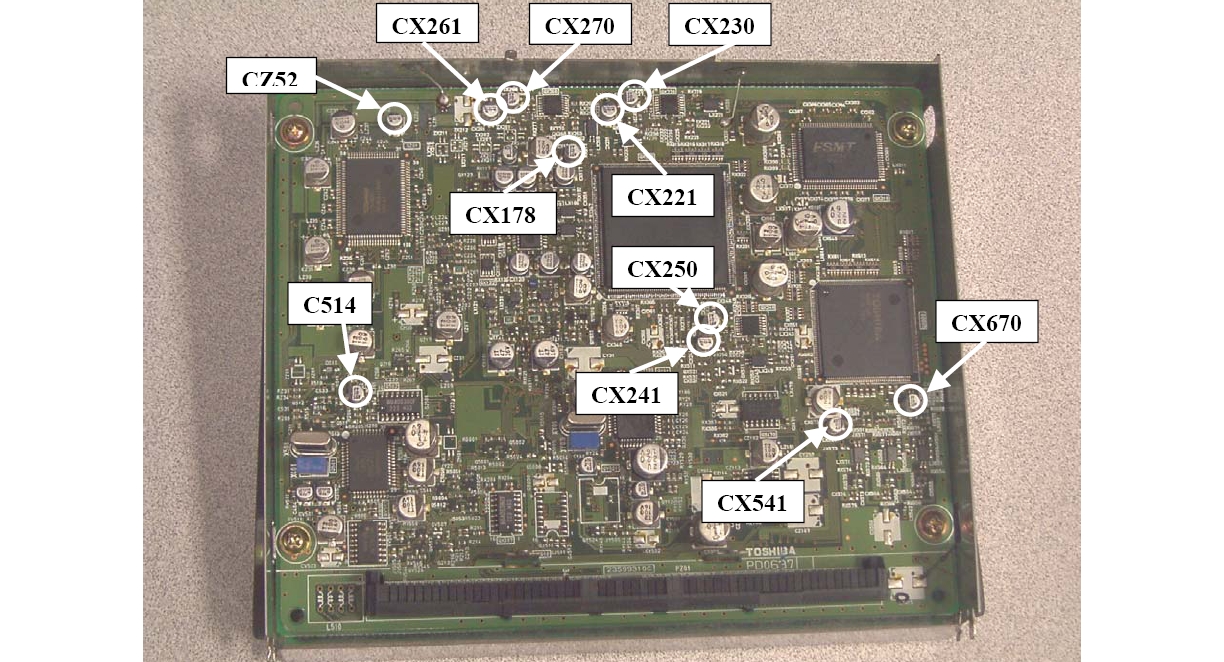

  Photo 1

  Replace 11 capacitors marked with white caption boxes.



Where to get the parts:

This kit can be ordered HERE

For more parts visit our store: ZEMTRONIX

Feedback:

For feedback or support please drop us a note: CONTACT US
