Samsung LCD Power Supply repair kit:

Power supply part number:

 BN44-00168A

This kit containes 7 components:

Electrolytic capacitor 1000uF/25V 4pcs.
Electrolytic capacitor 1000uF/25V 3pcs.

This tutorial demonstrates how to repair LCD Power Supply with following symptoms:

-shuts down
-takes a long time to come on
-relay clicks
-dead set

Instructions:

[full size image]

  Photo 1

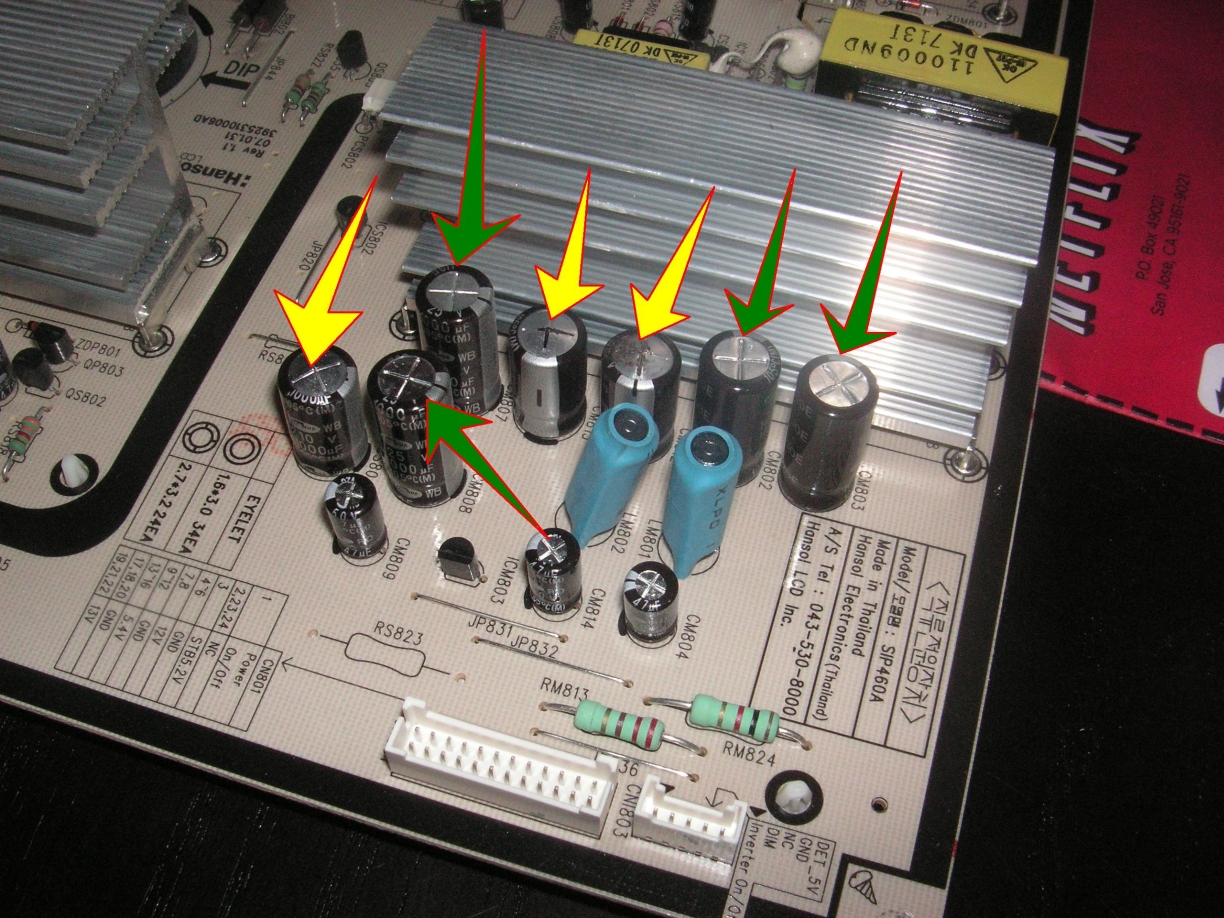

  Replace all the capacitors marked with arrows.



[full size image]

  Photo 2

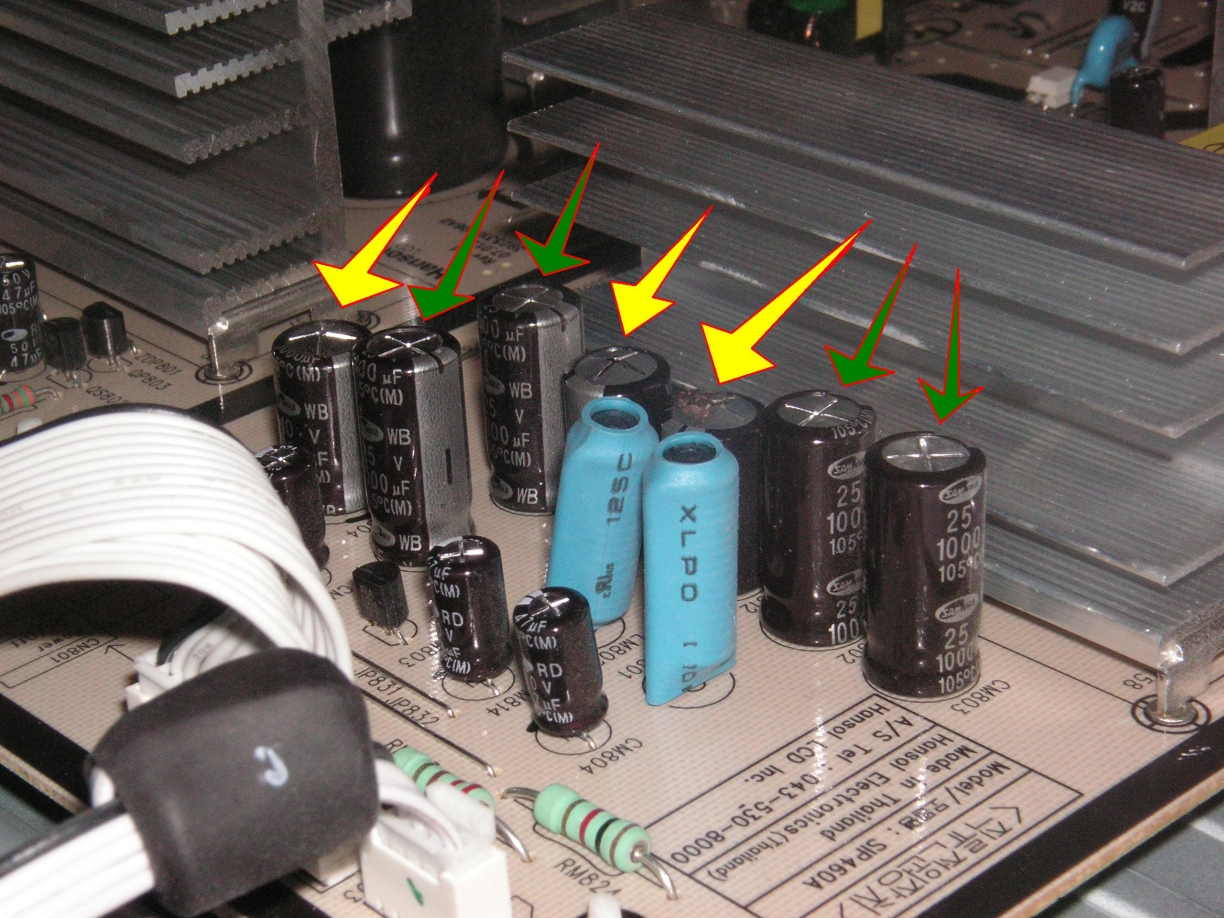

  Green arrows-1000uF/25V, yellow arrows-1000uF/10V (upgraded to 1000uF/25V capacitors)





Where to get the parts:

This kit can be ordered HERE

For more parts visit our store: ZEMTRONIX
