Philips VIZIO LCD Inverter Repair Kit:

Inverter board part numbers:

 6632L-0470A
6632L-0471A
0940-0000-1500

This kit containes 5 components:

Integrated Circuit BD9897FS 1pc.
MOSFET Transistor FDD8447L 4pcs.

This tutorial demonstrates how to repair LCD Inverter board with following symptoms:

-no picture, has sound
-buzzing noise
-burn marks on inverter board(s)

Instructions:

[full size image]

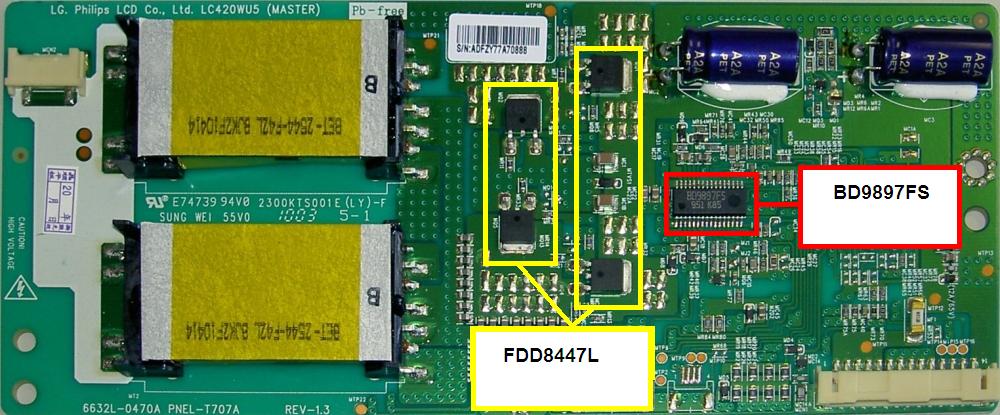

  Photo 1. 6632L-0470A

  Replace 4 MOSFETs marked with yellow captions and 1 IC marked with red caption.



[full size image]

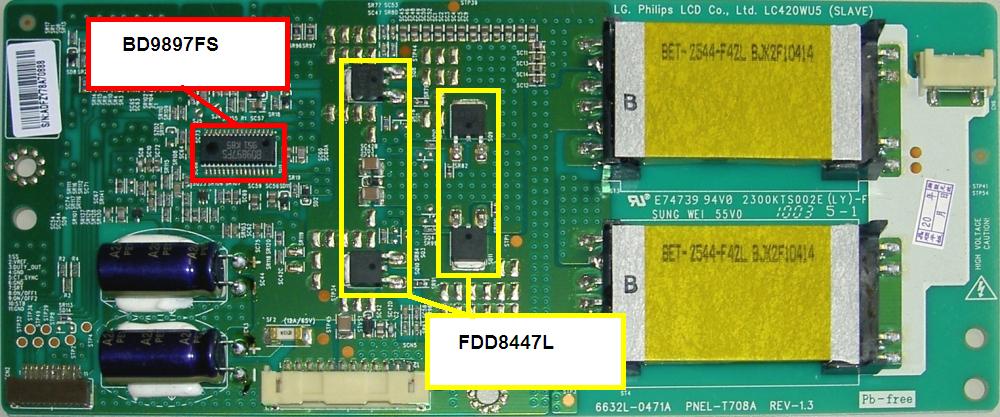

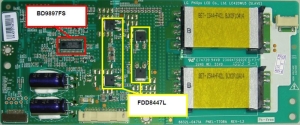

  Photo 2. 6632L-0471A

  Replace 4 MOSFETs marked with yellow captions and 1 IC marked with red caption.
